ENEC Mini 5 Pin Push Wire Connector for Wiring 0.5-2.5mm2









Ключевые атрибуты

Специфические атрибуты отрасли

Type

Adapter

Application

Power

Gender

Female

Другие атрибуты

Place of Origin

Guangdong, China

Brand Name

OPENWISE

Model Number

925-D5/9GL(NEL)

Housing material

PA66 94 V-2

Insert material

Brass/ Nickel-Plated/Stainless steel

Rated voltage

IEC 450V UL300V

Rated Current/Ampere

IEC 24A cUL 16A

Working Temperature

-40C-- 110C

Wire Range

0.5-2.5mm2; 20-14AWG

Certificate

CE,ROHS,REACH,ENEC,KEMA KEUR, CQC, cUL

Poles

2pole 3pole and 5 pole

Packing Detail

500PCS/CTN

Size

30mm*25.5mm*15mm

Упаковка и доставка

Packaging Details

1000pcs per carton; 200pcs per plastic bag; 8kgs/ carton; 57*28*12.5cm

Selling Units:

Single item

Single package size:

57X28X14 cm

Single gross weight:

6.500 kg

Настройка

Customized packaging

Min. order: 5000000

Обзор

Specification

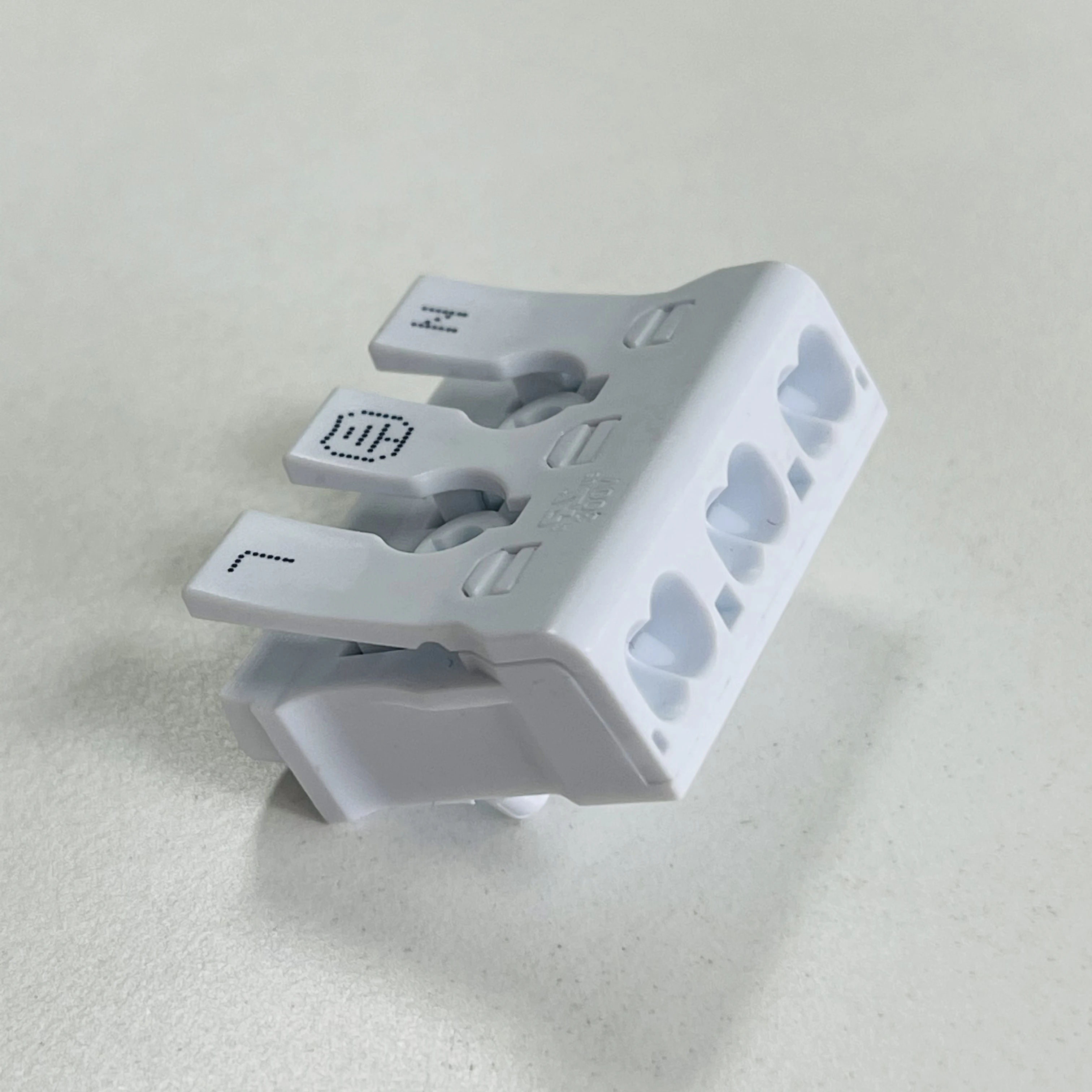

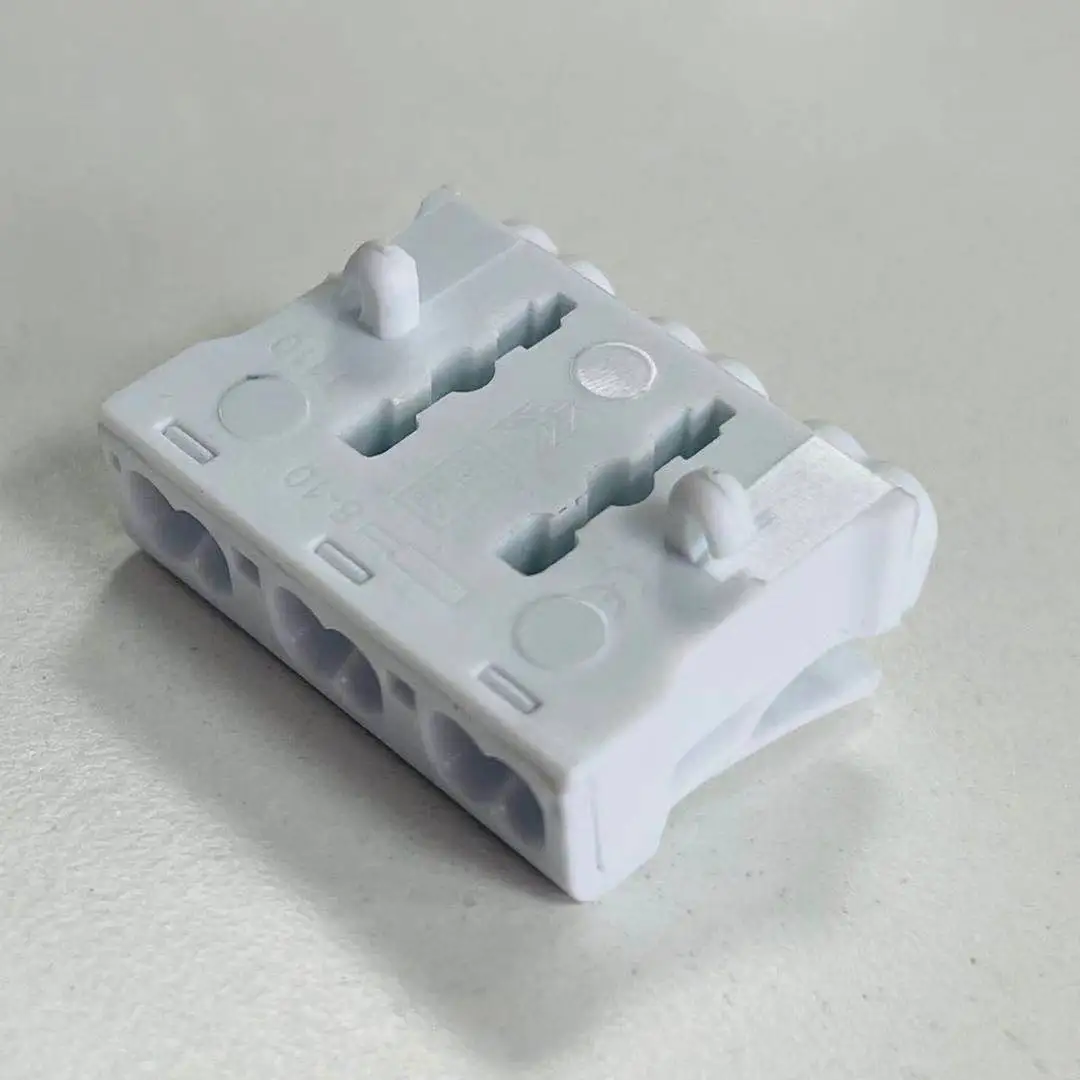

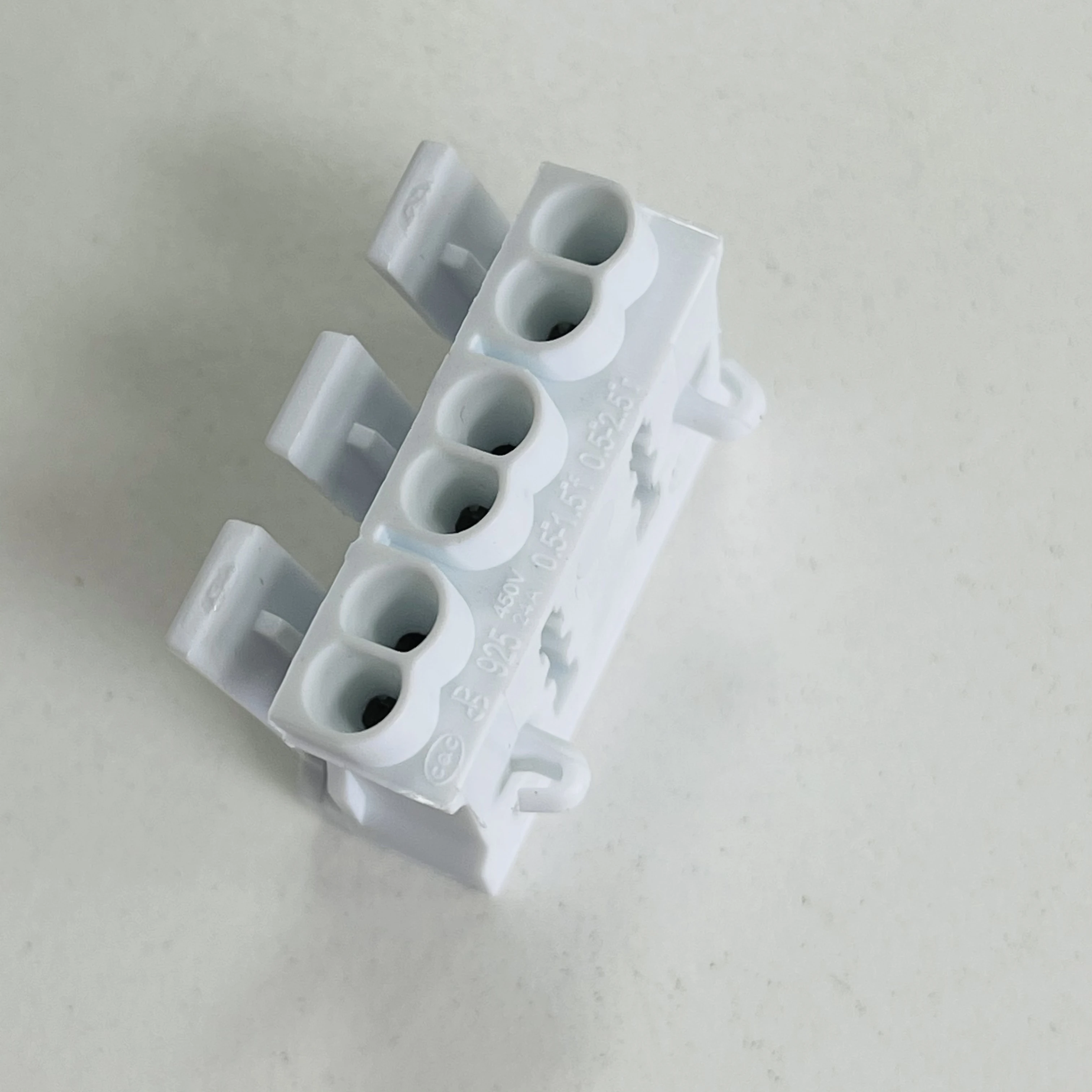

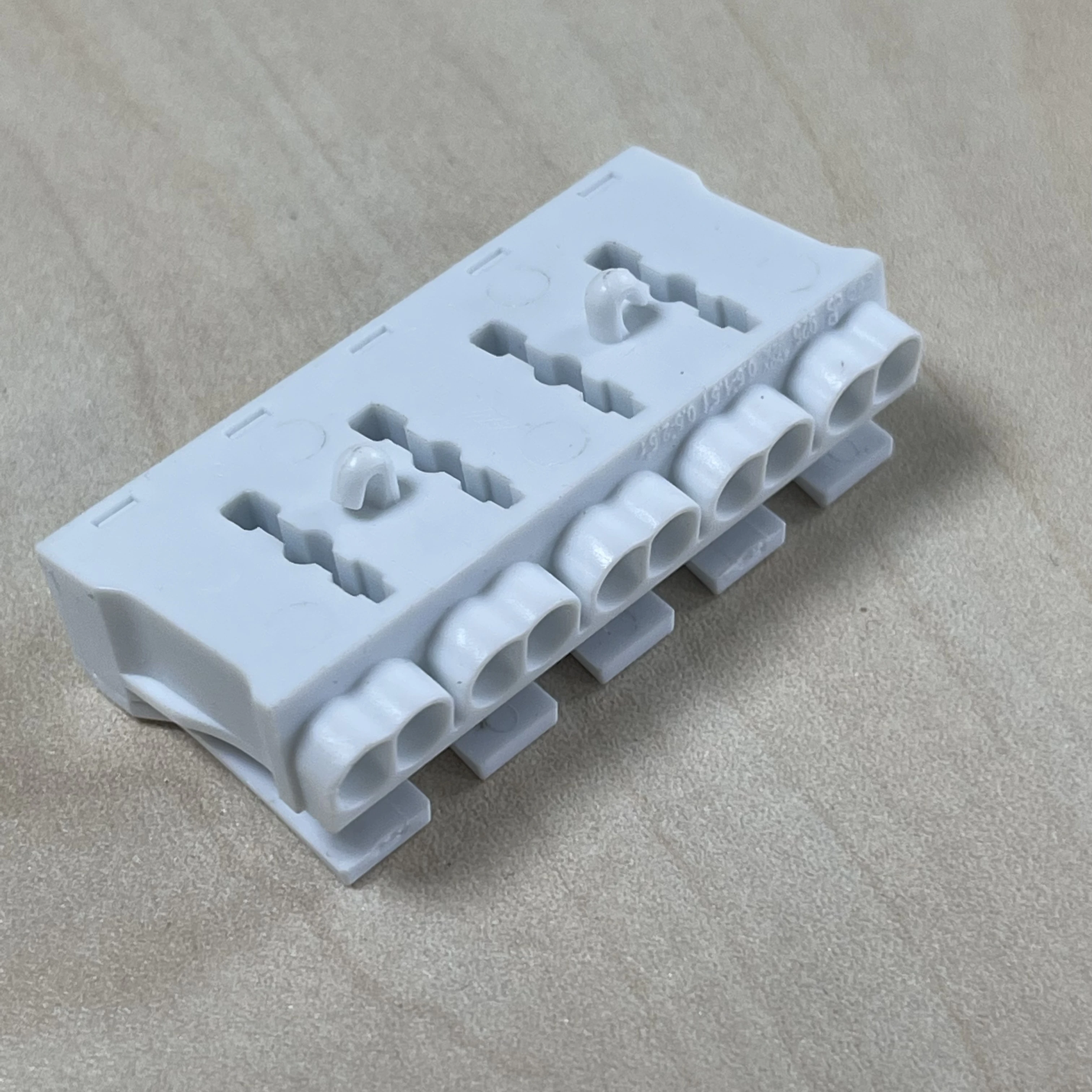

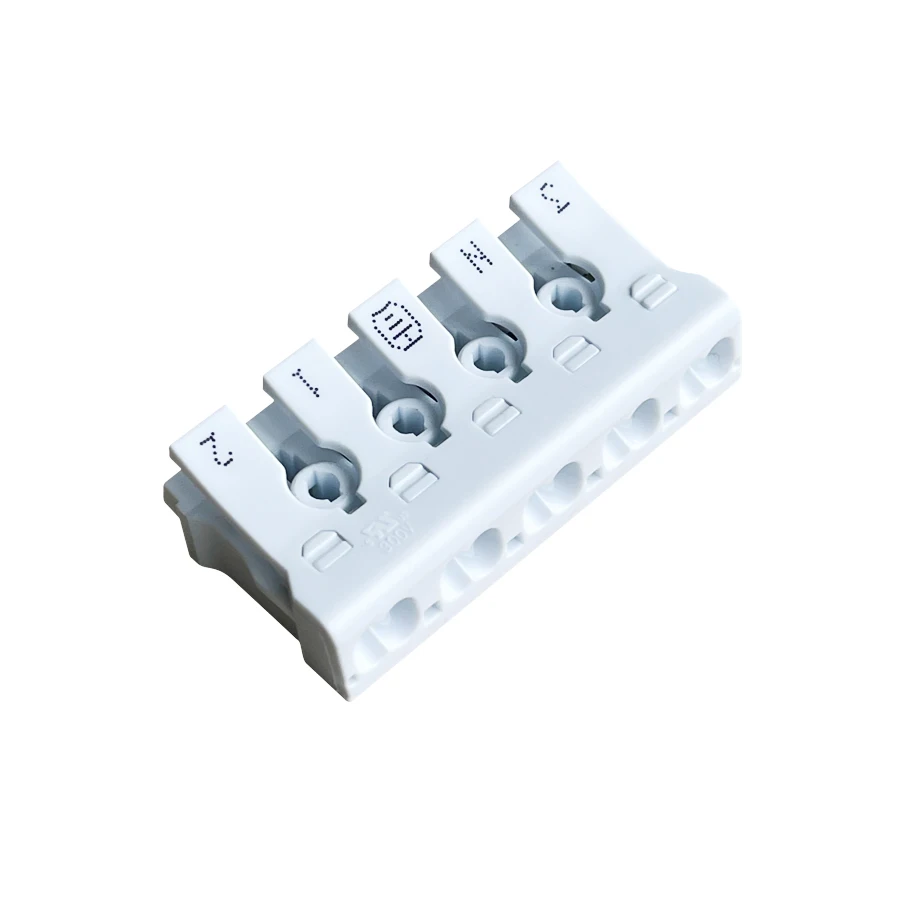

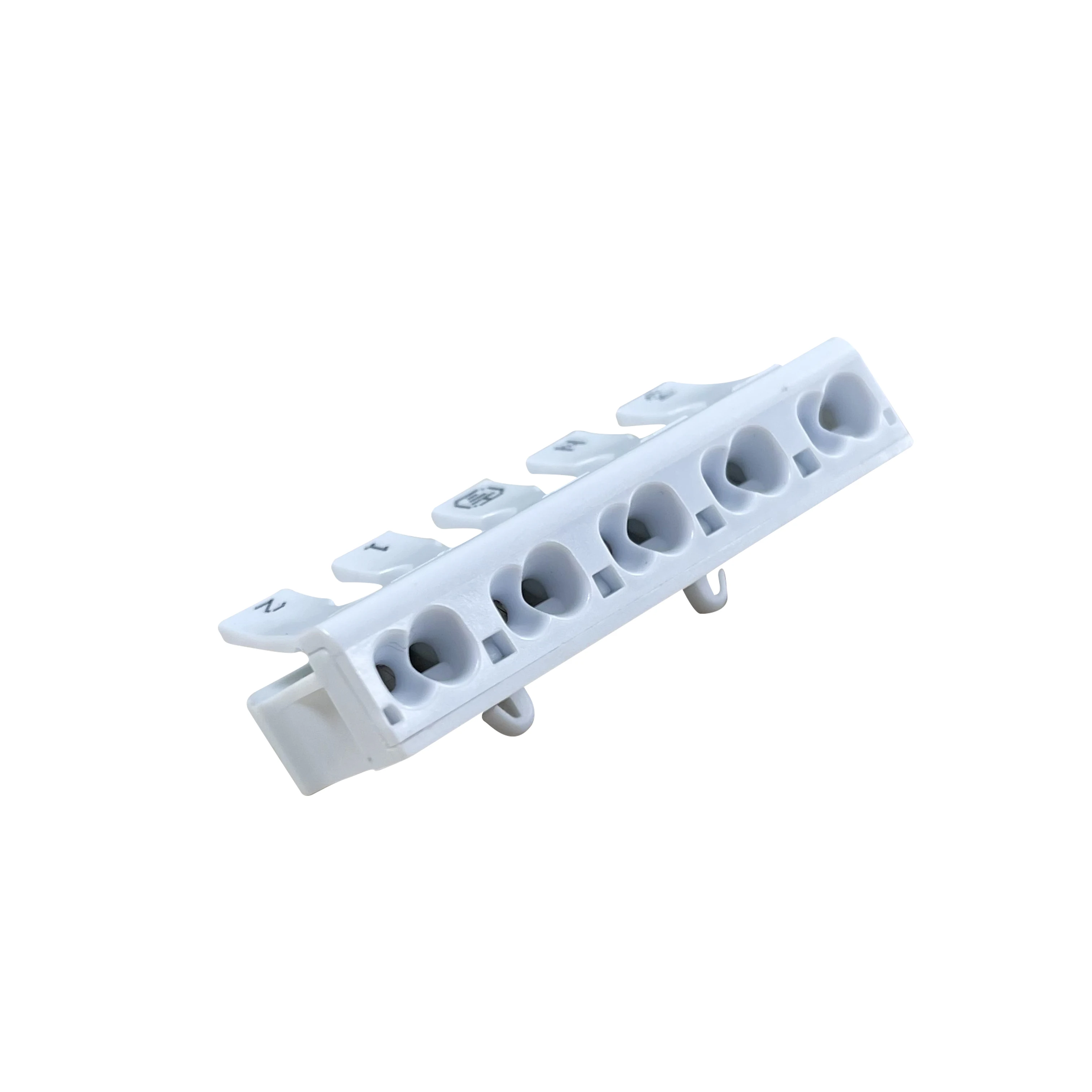

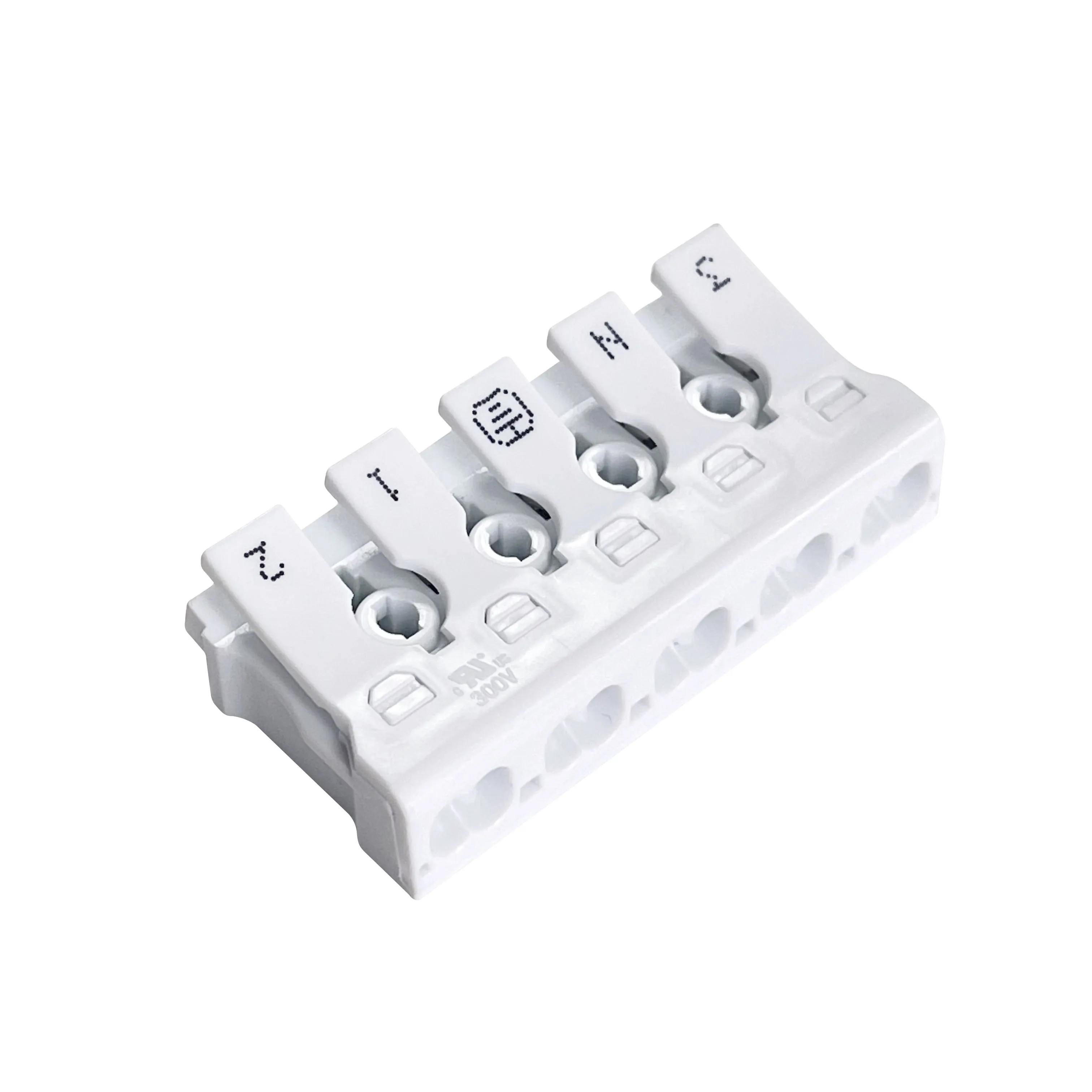

925 Series Mini Push Wire Connector

1. Snap-in pin for easy fixing

2. 2, 3, 4 and 5 pole for available

3. Button for wire release

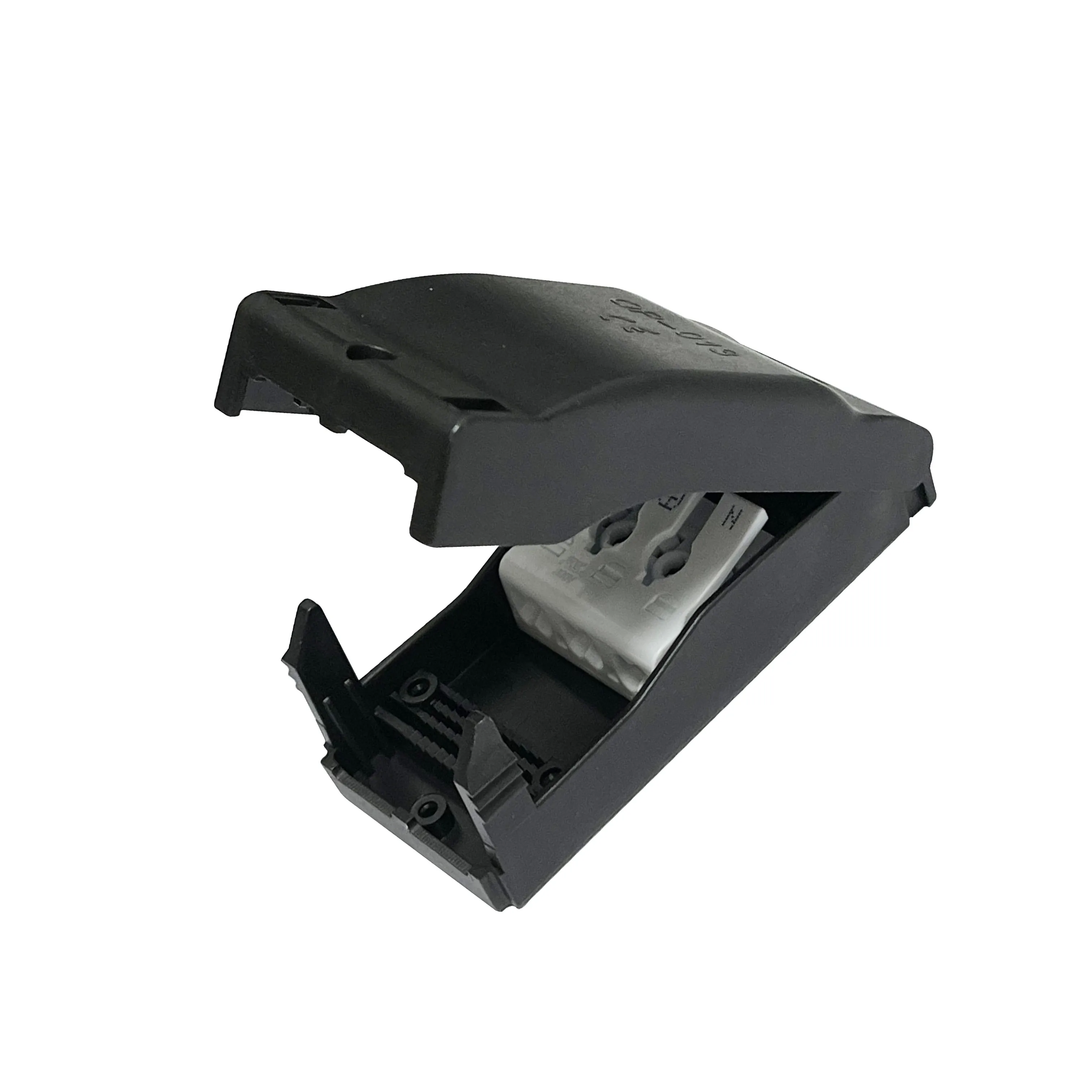

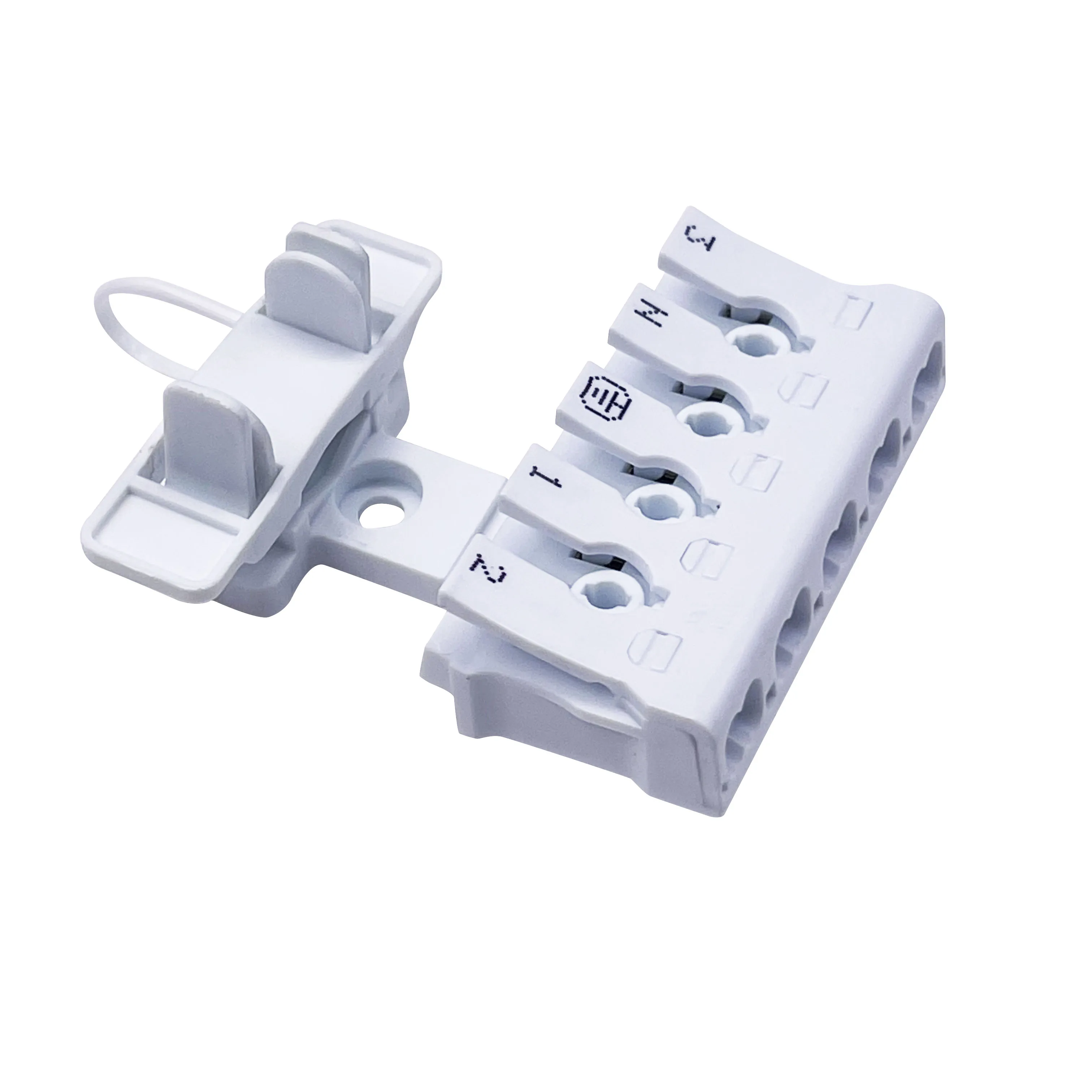

4. Earth Plate and cable clamp provide

Material	Housing :PA66/94V-2 Grade; Button : PC 94V-2 Grade;
Insert	Brass/Nickel -Plated/Stainless Steel
Voltage/ Ampere	IEC 450V/24A cUL 300V/16A
Working Temperature	-40C-110C
Cross Section	0.5-2.5mm²
Certificates	UL,ENEC,CE,Kema keur, Rohs, Reach;

Product Description

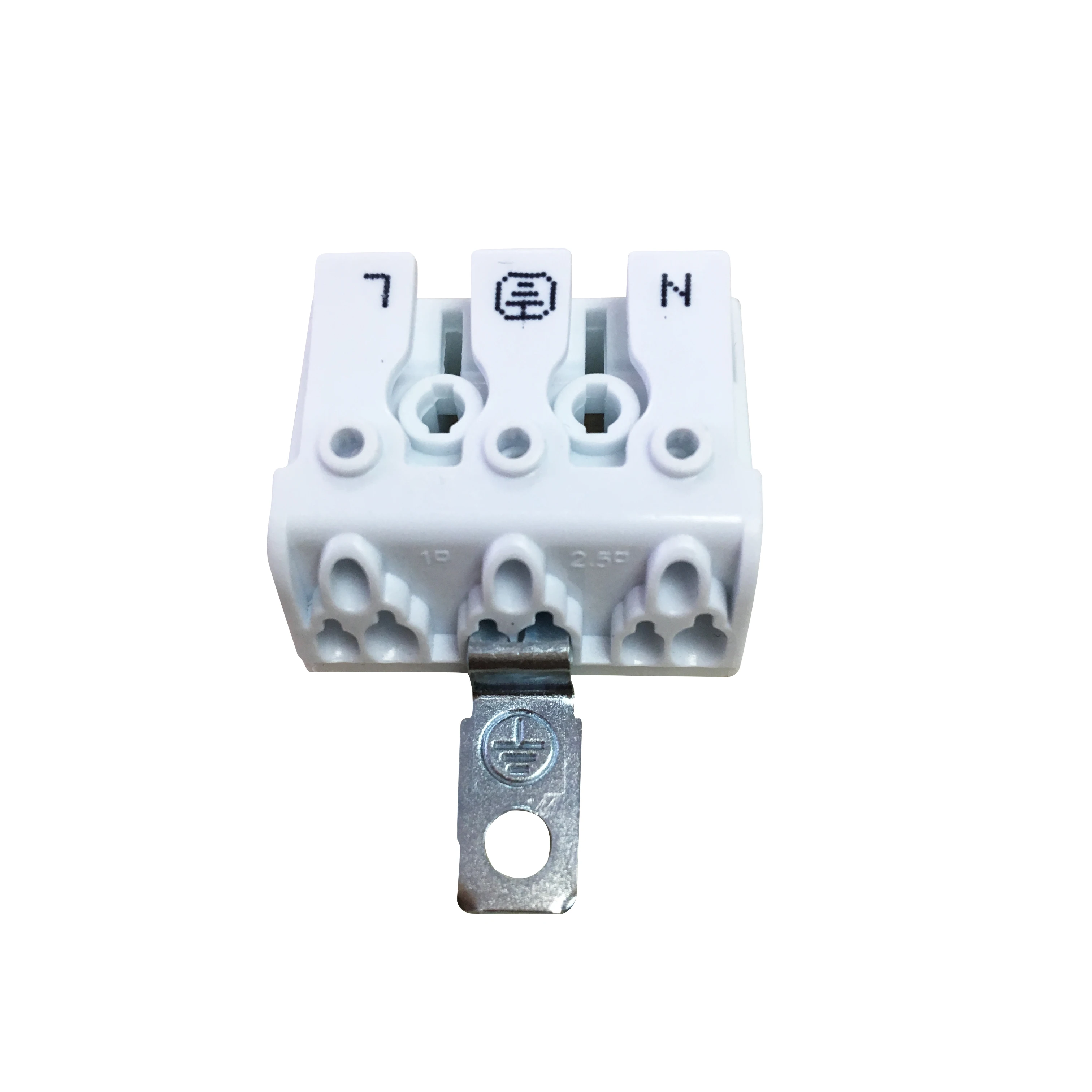

3 pole Connector Dimension

size : 30*25.5*15 mm

Packing & Delivery
