LED Lighting Terminal Block Electrical Terminal Blocks Connectors









Настройка

Customized packaging

Min. order: 75000

Обзор

Product Description

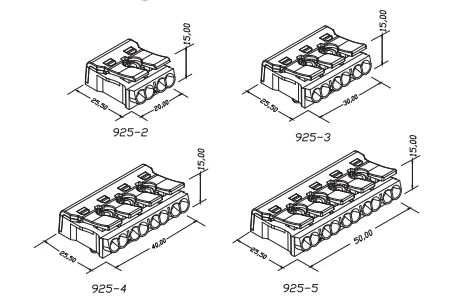

3 pole Connector Dimension

size : 30*25.5*15 mm

Specification

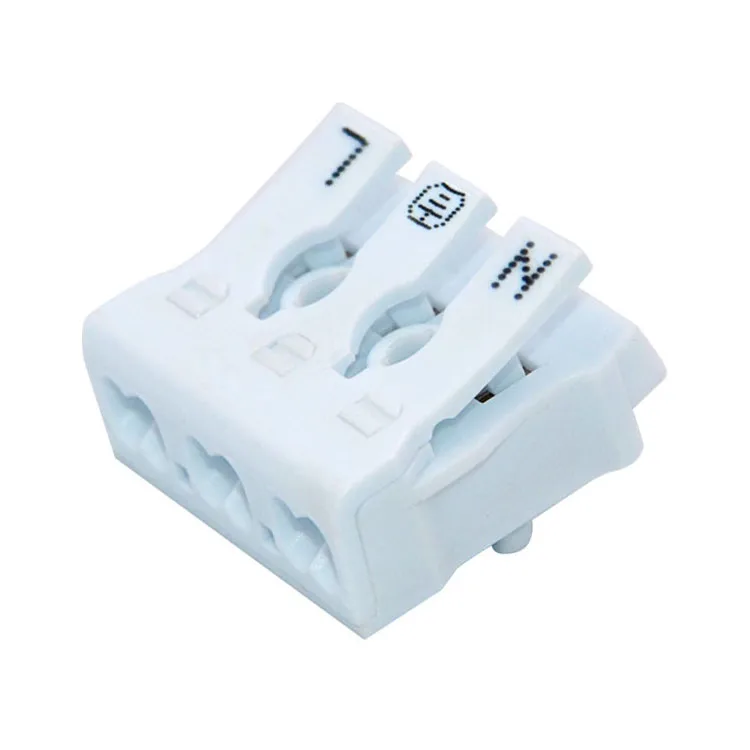

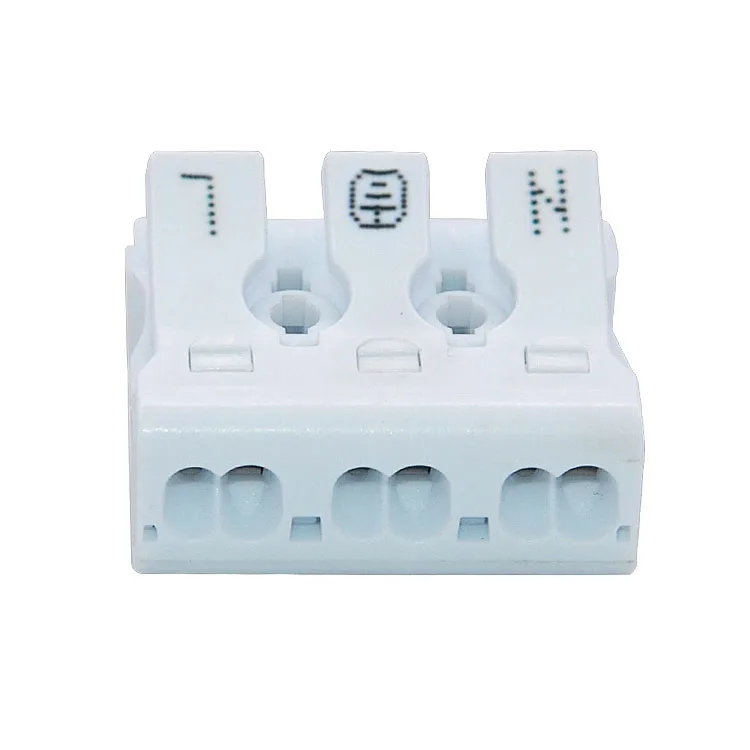

925 Series Mini Push Wire Connector

1. Snap-in pin for easy fixing

2. 2, 3, 4 and 5 pole for available

3. Button for wire release

4. Earth Plate and cable clamp provide

Material	Housing :PA66/94V-2 Grade; Button : PC 94V-2 Grade;
Insert	Brass/Nickel -Plated/Stainless Steel
Voltage/ Ampere	IEC 450V/24A @UL 300V/16A
Working Temperature	-40C-110C
Cross Section	0.5-2.5mm²
Certificates	@UL,ENEC,CE,Kema keur, Rohs, Reach;

Packing & Delivery

6. What's the products certificates?

-Products have VDE, @UL, CE,ENEC,CQC, ROHS,REACH certificates.

6. How do you make our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit;
-2. We respect every customer as our friend and we sincerely do business
and make friends with them, no matter where they come from.
